Powerful 10-band signal jammer 5G-4G-3G-2G+WIFI 2.4G/5.8G+GPSL1

Product detailed description

Basic specifications:
Interference Signal Type : 5G-4G-4G1-3G-CDMA-GSM-TD-DCS/PHS-WIFI 2.4G/5.8G-GPS
Output power: Total 20W, 2W each band
Interference radius ：2-20 meters
Built-in high gain omnidirectional 360° coverage with no dead angle
The case is durable, dustproof and shockproof
Power supply: AC110-240V to DC12V

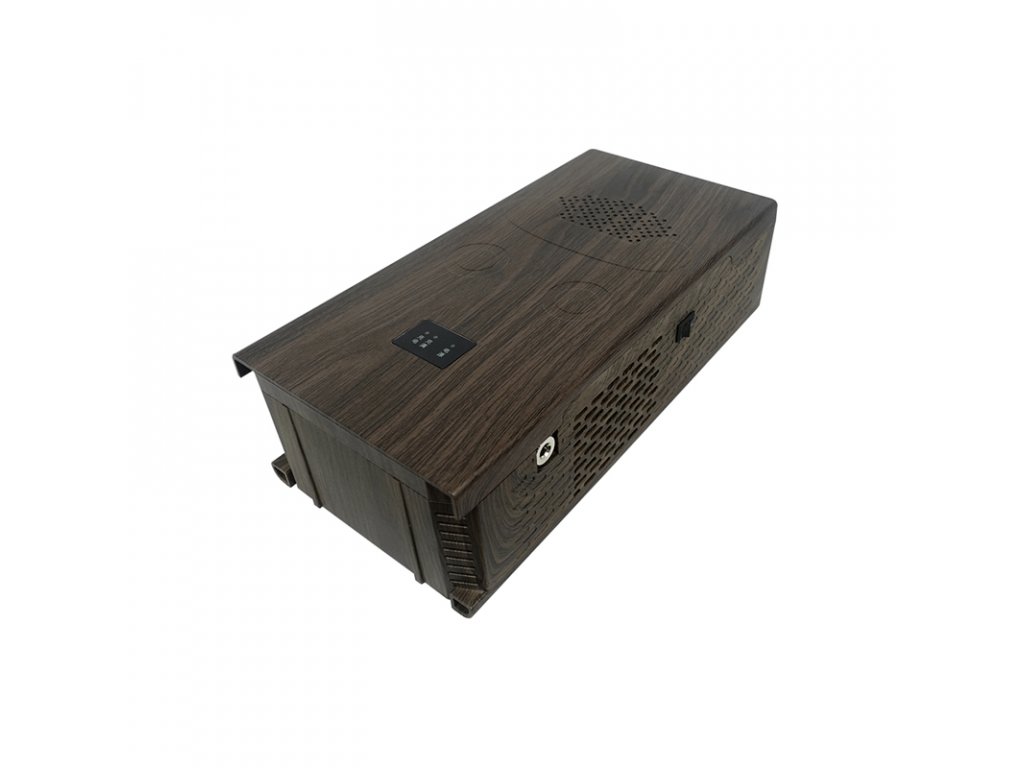

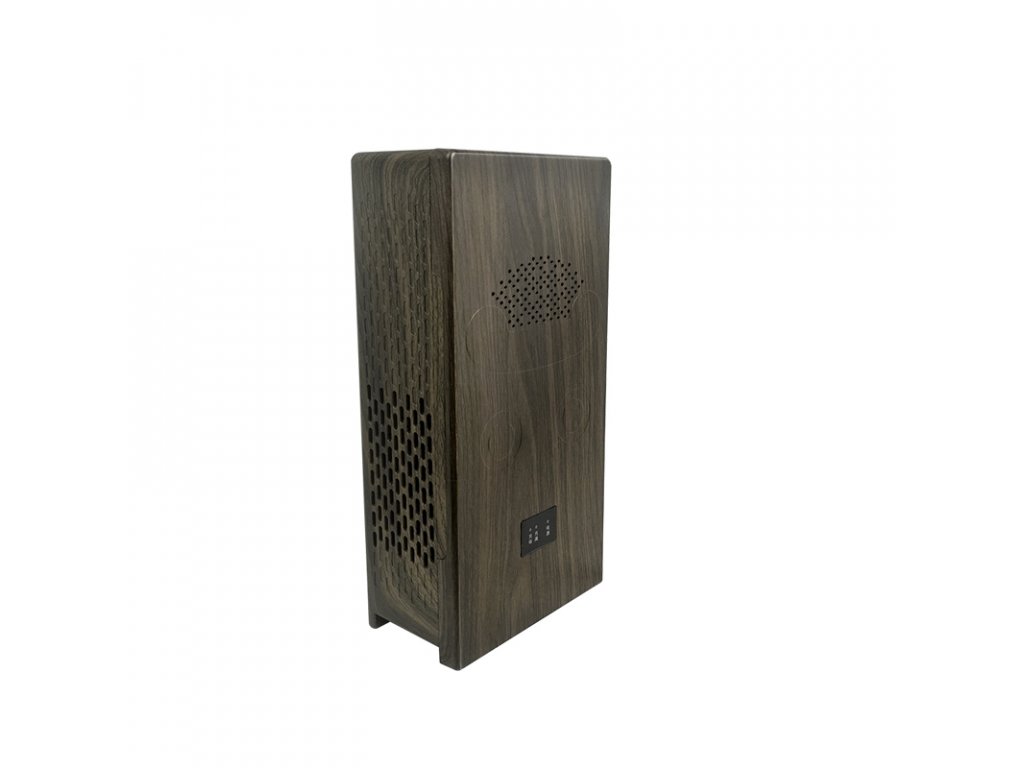

Simple design-imitation wood-camouflage (doesn't look like a jammer)
The shielding range can reach 5-30 meters, depending on the current environment.
Reference range 5-30m Amount of power input 25W
Cooling system：Built-in cooling fan - Aluminum heatsink with high efficiency
Power supply: Built-in rechargeable lithium battery, battery life up to 1 hour
Product dimensions: 255x125x75 mm
Product weight: approx. 1.5 kg

Manufacturer's specifications

Channels Frequency
CDMA 869-894 MHz 37 dBm 37dBm/30KHz(min) 2W
/GSM 925-960 MHz 37 dBm 37dBm/30KHz(min) 3W
TD 2010-2025 MHz 37 dBm 37dBm/30KHz(min) 2W
DCS/PHS 1805-1920 MHz 37 dBm 37dBm/30KHz(min) 3W
3G 2110-2170 MHz 37 dBm 37dBm/30KHz(min) 2W
4G1 2300-2390 MHz 37 dBm 37dBm/30KHz(min) 2W
4G/5G 2510-2690 MHz 37 dBm 37dBm/30KHz(min) 2W
WIFI 2400-2500 MHz 37 dBm 37dBm/30KHz(min) 2W
5GWIFI 5725-5850 MHz 35 dBm 37dBm/30KHz(min) 2W
5G 3400-3600 MHz 35 dBm 37dBm/30KHz(min) 2W
5G 3600-3800 MHz 35 dBm 37dBm/30KHz(min) 2W
GPS 1570-1620 37 dBm 37dBm/30KHz(min) 2W

Package contents:
1x jammer
1x AC charger
