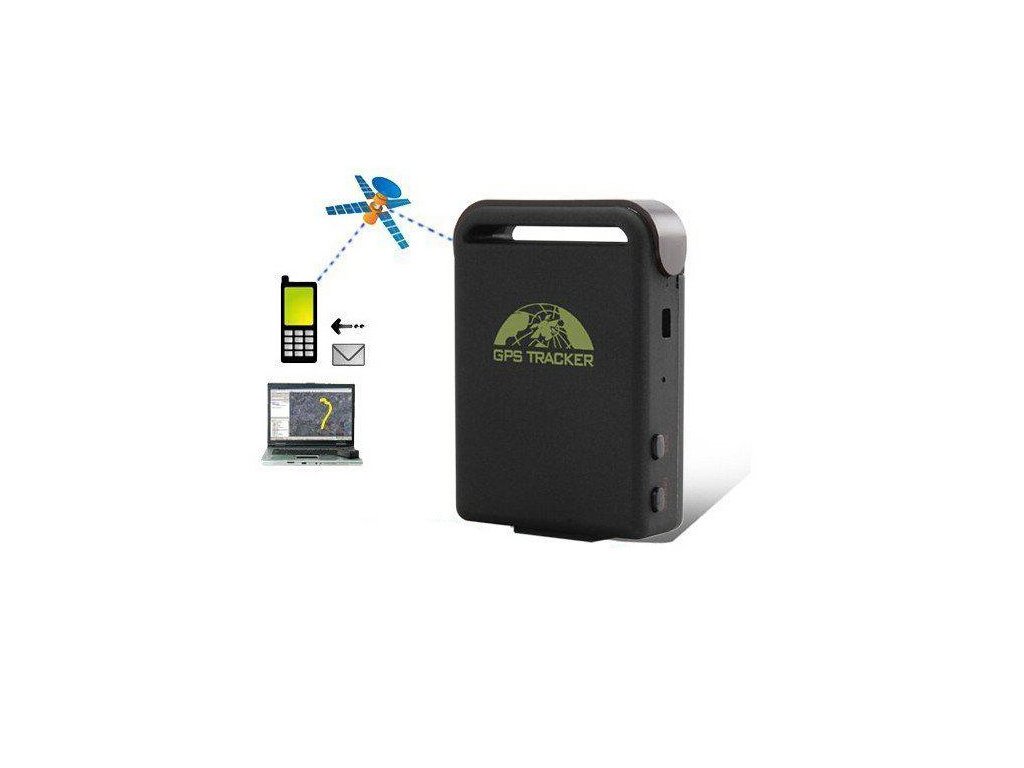

GPS locator TK102-B with 12-24V charger for the vehicle

Product detailed description

No monthly fee.
Take care of your property completely yourself.

Technical parameters:
- Dimensions: 67mm x 46mm x 18mm (1.8 '' * 2.5 '' * 0.65 '')
- Bands: 850/900/1800 / 1900Mhz
- Networks: GSM / GPRS / GPS
- GPS Chip: SIRF3 Chip;
- GPS sensitivity: -159dBm;
- GPS accuracy: 5m;
- Weight: 50g;
- Initialization time: cold start 45 seconds, warm start 35 seconds, restart 1 second;
- Standby time: up to 9 days (lower at outdoor freezing temperatures)
- GSM / GPRS / GPS antenna
- Built-in microphone
- Storage temperature. -40 ° C to + 85 ° C
- Operating temperature -20 ° C to + 55 ° C
- Humidity 5% - 95% non-condensing

USE (briefly):
You can hide and use the GPS locator anywhere, eg under seats, backpack, under the hood, on a dog collar, etc ... It is a highly effective product in the fight against theft of cars and other devices. The locator has an SOS button which, when pressed, sends positions up to 5 preset numbers. It has a built-in microphone, you can listen to the surroundings of the locator, it will also alert you to a drop in battery voltage. You can set a certain demarcated area, if the locator gets out of this area, it will send an SMS with a warning. You can also set the maximum speed of the locator.

FUNCTION:
1. Real-time monitoring
2. Auto tracking: the locator can report to you at preset intervals.
3. Announcement of the last known position after leaving the area without a signal
4. Audio monitoring: the ability to call the locator and listen to the surrounding area, has a built-in microphone!
5. Geo-wall: the locator alerts you if it moves away from a preset area
6. Motion Alert - warns you if the locator moves anywhere
7. Speed ​​warning (place in the monitored car / object, set eg 120kmh, and if your monitored car exceeds 120kmh, the locator will send you a message how much KM / H the car is driving, exact coordinates where it is, time and battery status of the locator ... .)
8. SOS: Press the SOS button on the locator and send a warning about your position to the preset numbers.
9. Low battery warning
10. SMS center
11. Sending GPS data via GPRS to IP address
12. Wap monitoring via PDA or mobile phone
13. Real-time monitoring via computer
14. Shutdown warning, notifies you if the locator shuts down
15.Possibility of storing up to 16000 positions in the internal memory
16.Possibility to expand the memory with a micro SD card up to 2GB
17. Shake sensor
18.Sleep mode

PACKAGE CONTENTS:
1x GPS Locator TK102B
1x USB charger 110-230V EU plug
1x External charging station
2x Li-ion battery 3.7V, 1000mAh
1x 12-24V power supply to the vehicle
1x USB cable
2x Back cover (with magnet and without magnet)
1x English manual
1x Czech instructions for download

Upon agreement, we will also provide professional installation in your motor vehicle.

How much will my monthly traffic cost me?

When using the locator in sleep mode, when only if you need to find out the location of the subject, you only need to buy a second SIM card for your flat rate without GPRS activation, and this is already offered by operators for 10 CZK / month. You only pay for the location of the subject for a sent SMS message of approx. CZK 2.If if you do not request location information even once a month or once, you only pay CZK 10 / month. but we do not recommend this option due to the fact that you must top up the card at least 1x CZK 200 for 12 months. Otherwise it will be canceled.
When using the locator in the online mode, where you can see the movement of the subject in real time, you only need to buy a second SIM card for your flat rate for CZK 10 / month with GPRS activation.
Our locator is equipped with a shock sensor, so if it is in this mode, it will send data to the mapserver after 3 min. Intervals. The price varies according to the operator around 100 CZK / month. If the vehicle is stationary, the locator will be in the offline sleep mode. This saves not only the battery but also the data sent to the mapserver.
You can find a free application for online monitoring of this locator from a PC here: http://www.gpstrackerxy.com/Login.aspx?Server=1

You can find the commissioning of the locator on the server in the related files section of the setup instructions.

For demo version, enter user ID: DEMO and password: 8888

For Android smartphones here: https://play.google.com/store/apps/details?id=com.coban.en&rdid=com.coban.en
IOS here: https://apps.apple.com/cz/app/trackerhome/id796842725?l=cs
